Acorn Stairlift Diagnostic Display Codes
What are stairlift codes used for?
The Acorn and Brooks straight stairlift displays a series of Stairlift fault codes. These fault codes are for diagnostic purposes. They help the user or stairlift engineer quickly identify the current status or potential problem.
This is especially useful when trying to explain over the phone to a Stairlift engineer exactly what has happened or gone wrong with the lift. Using these informative codes enables the Stairlift engineer to quickly diagnose the exact cause of the fault or issue. In many cases they can be used them to resolve the problem over the phone. This saves the user money by not having to pay for a callout.
How to use the stairlift display codes:
The very first versions used a series of traffic light coloured led’s to display the fault codes. These were quite hit and miss, especially when the led’s became loose or desoldered from the circuit board in the arm. Also, when carrying out a Stairlift service, these are invaluable for determining whether individual safety circuits are working correctly or not. It eventually moved on to a digital display which showed various letters and numbers in single format as in the following table:

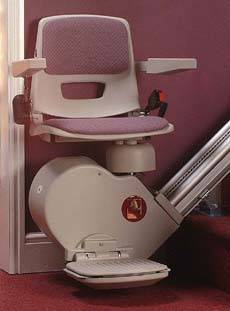

Older Acorn Superglide
Acorn Superglide 120
Acorn Superglide 130
Acorn Superglide T700
Acorn & Brooks Superglide 120 (older versions)
| Display Code | Power DownDescription | Possible Fault | Possible Solution |
|---|---|---|---|
| Blank | Power Down | Check main power switch | If power switch is on, call Stairlift Medics |
| 0 | Batteries (Low Voltage) | Battery voltage is 17V or less | Call Stairlift Medics |
| 1 | Normal | Armrest toggle switch fault | Try a remote controller or call Stairlift Medics |
| 2 | Lift charging, audible beeping | Make sure charger is pluuged in to outlet; or lift is not parked on charge contact; or power outage | Plug charger in to wall outlet; or move lift to charge station; or wait for power restoration if none, call Stairlift Medics |
| 3 | Over Speed Governor | Chassis speed or internal malfunction | Handwind lift up track a few inches to reset and resume normal operation; or Call Stairlift Medics |
| 4 | Seat Turned | seat is not in the forwards travel position; or the armrest on the downward facing side of seat is not down (some models) | Lock seat to forward and make sure armrests are in down position; or Call Stairlift Medics |
| 5 | Key Off | Key is in off position | Turn key to on position |
| 6 | Final Limit | Lift has overrun the final limit switch | Handwind lift up/down slightly back towards the opposite end to reset; or call Stairlift Medics |
| 7 | Footrest Down | Footrest safety panel on the bottom of the footplate is engaged | Make sure there is no footrest obstruction; or Call Stairlift Medics |
| 8 | Footrest Up | Footrest safety edge on the side facing up the stairs is engaged | Make sure there is no obstruction on the footplate; or Call Stairlift Medicss |
| 9 | Carriage Up | Safety panel on the upward facing side of the stairlift main chassis is engaged | Make sure there is no obstruction on the track on the upward side of lift; or call Stairlift Medics |
| A | Carriage Down | Safety panel on the downward facing side of the chassis is engaged | Make sure there is no obstruction on the track on the down side of the lift; or call Stairlift Medics |
| C | Batteries Flat | Battery Condition | Park lift on charge station for 1 hour; or call Stairlift Medics |
| E | Brake Fault | Possible low batteries | Try reset by turning stairlift power off and then back on; leave on charge for 1 hour; or call Stairlift Medics |
| F | Motor Fault | Motor is malfunctioning | Call Stairlift Medics |
| U | Relay Fault | Relay or circuit board malfunction | Reset by turning off stairlift power and unplugging charger for 5 minutes. Plug in charger and power on lift; or call Stairlift Medics |
Acorn & Brooks Superglide 130
| Display Code | Status | Description | Solution |
|---|---|---|---|
| No Displa | Normal | Power Down - Sleep Mode | Check power switch is on. Activate toggle to wake Call Stairlift Medics |
| A1 | Normal | No Charge. Lift will beep | Check power switch is on. Activate toggle and drive to charge point call Stairlift Medics |
| P0-P3 | Normal | No Movement | Both directional buttons were pressed at the same time. Release. Allow 5 seconds. Try again |
| A2 | Normal | Lift moving up | Lift operating normally |
| A3 | Normal | Lift moving down | Lift operating normally |
| A4 | Normal | Lift moving up (remote) | Lift operating normally |
| A5 | Normal | Lift moving down (remote) | Lift operating normally |
| C1 | Normal | Battery Charging | Lift operating normally |
| C4 | Normal | Battery Fully Charged | Lift operating normally |
| C5 | Fault | Battery Fault | Call Stairlift Medics |
| E1 | Normal | Safety Edge, Footrest Up | Check upward side of footplate for obstruction or, call Stairlift Medics |
| E2 | Normal | Safety Edge, Footrest Down | Check bottom side of footplate for obstruction, or call Stairlift Medics |
| E3 | Normal | Safety Edge, Chassis Up | Check main chassis and track on upward side of stairlift for obstruction, or call Stairlift Medics |
| E4 | Normal | Safety Edge, Chassis Down | Check main chassis and track on downward side of stairlift for obstruction, or call Stairlift Medics |
| E5 | Normal | Seat not in position | Turn seat to normal position and make sure armrests are in down position, or call Stairlift Medics |
| E8 | Normal | Battery Low | Drive stairlift to charge point, or Call Stairlift Medics |
| E9 | Normal | Key switch off | Turn key to on position |
| F1 | Fault | Relay Fault | Power down stairlift, wait 5 minutes and power on, or call Stairlift Medics |
| F2 | Fault | Brake Fault <18V | Power off/on stairlift to reset. Drive stairlift to charge point for 1 hour; or call Stairlift Medics |
| F3 | Fault | Motor Fault | Power off/on stairlift to reset. Call Stairlift Medics |
| F4 | Fault | Motor Over current | Power off/on stairlift. Check user weight is appropriate for lift call Stairlift Medics |
| F5 | Fault | Battery Fault | Drive stairlift down to lower charge point. Leave to charge for 1 hour. Call Stairlift Medics |
| F6 | Fault | Final Limit Overrun | Handwind stairlift up (clockwise) to reset. or, call Stairlift Medics |
| F7 | Fault | OSG Switch | Handwind stairlift up (clockwise) to reset. or, call Stairlift Medics |
| F8 | Fault | System Lockout | Power off/on to reset |
| H1 | Normal | Multiple operating errors | check all safety edges, call Stairlift Medics |
| H2 | Normal | Multiple operating errors | check all safety edges, call Stairlift Medics |
| H3 | Normal | Multiple operating errors | Check all safety edges, call Stairlift Medics |
| H4 | Fault | Safety Device Fault | Call Stairlift Medics |
